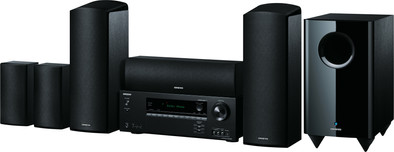

Onkyo HTS-5805 Black



Key specs

Wireless rear speakers
No
Subwoofer type
Wired

Pros and cons

According to our home cinema set expert
  • Pros:
    The Dolby Atmos front speakers bounce the surround sound off the ceiling.
  • Pros:
    Thanks to the integrated DAC, you can experience clear, full sound.
  • Pros:
    You can stream music from your smartphone or tablet to the receiver.
  • Con:
    You can't stream music to the receiver via WiFi.
Product Expert home cinema sets

Turn your living room into a private cinema with the Onkyo HTS-5805. The home cinema receiver comes with a 5.1.2 speaker set. Thanks to the Dolby Atmos techonology, the front speakers bounce the movie sound off the ceiling. This way, the surround sound really comes from all sides and places you in the middle of the movie. The DAC ensures that each sound is reproduced in a clear, lifelike manner. This high sound quality is also handy when it comes to music. Besides video sources, you can also connect music players. You can easily stream the music on your smartphone or tablet to the HTS-5805 via Bluetooth. You can control this set with the buttons on the casing or the included remote.


Included by default

  • HT-R494 receiver
  • HTP-588 speaker set
  • Measuring microphone
  • Speaker cables
  • Subwoofer cable
  • FM antenna
  • AM antenna
  • Remote
  • User manual

Specifications

Product

Product number
662416
Manufacturer code
45805
Brand
Onkyo
Warranty
2 years
Warranty type
Carry-in warranty

General properties

Speaker composition
5 speakers + sub
Wireless rear speakers
No
Including peripherals
Remote control, Measuring microphone
Energy consumption standby
0,3 W

Play

Media player
No
Optical drive available
No
3D
Yes
Type of image definition support
HD ready (720p), Full HD (1080p), Ultra HD (4K)
Radio
Yes
Full HD upscaling
No
Hi-Res audio
No
Multi-room audio
No
Smart TV
No

Amplifier and speakers

Number of audio channels
5
Number of subwoofer channels
1
Sound reproduction
Surround
Surround sound systems
Dolby Atmos, Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master
Subwoofer type
Wired
Wireless rear speakers
No
Continuous/nominal total output capacity (RMS)
200 W
Hi-Res audio
No

Network and streaming

Bluetooth
No
Integrated WiFi
No
Multi-room audio
No
Plays from network
No

Ports

HDMI connection
Yes
HDMI ARC (Audio Return Channel)
Yes
Number of digital optical inputs
2
Type of digital optical connection
Standard TOSLINK
HDMI CEC
Yes
Audio channels
5.1
USB port
Yes
Digital optical connection
Yes
Headphone jack
Yes
3.5mm mini-jack connector
No
RCA connector
Yes
Digital coaxial connector
Yes
Component video connector
Yes
Composite connector
Yes
SCART connector
No
Antenna connector
No
VGA connector
No
Network connector
No
Surround sound systems
Dolby Atmos, Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master
Number of USB ports
1
USB function
Charging an external device

Physical properties

Depth front speaker
18,3 cm
Width front speaker
15,5 cm
Height front speaker
46,7 cm
Rear speaker depth
9,6 cm
Rear speaker height
23 cm
Rear speaker width
11,5 cm
Width center speaker
40,9 cm
Depth center speaker
12,1 cm
Height center speaker
11,5 cm
Subwoofer depth
41 cm
Subwoofer width
23 cm
Subwoofer height
42,5 cm
Weight
8 kg
Color
Black
Width
43,5 cm
Height
16 cm
Depth
32,8 cm

Awards

Best tested
No
