Compare

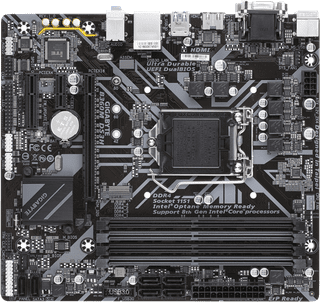

Gigabyte B360M DS3H
94,95
ASUS PRIME B760-PLUS D4
119,-

94,95
119,-

Only show differences

Product

Product number

Product number
833053
949663

Manufacturer code

Manufacturer code
B360M DS3H
90MB1CW0-M1EAY0

Brand

Brand
Gigabyte
ASUS

Warranty

Warranty
3 years
3 years

Processing of your defect

Processing of your defect
Via Coolblue
Via Coolblue

Old product returned for free

Old product returned for free

General properties

Form factor (motherboards)

Form factor (motherboards)
MicroATX
ATX

Chipset properties

Motherboard chipset

Motherboard chipset
Intel B360
Intel B760

Socket (CPU)

Socket (CPU)
1151 (8th + 9th gen Intel)
Intel LGA 1700

Chipset cooler (motherboards)

Chipset cooler (motherboards)
Passive
Passive

RAM properties

Total number of RAM slots

Total number of RAM slots
4
4

Memory type

Memory type
DDR4
DDR4

Voltage RAM

Voltage RAM
1.35V

Memory speed

Memory speed
2666 Hz
5066 MHz

Maximum internal memory

Maximum internal memory
64 GB
128 GB

Number of memory channels

Number of memory channels
Dual channel (2)
Dual channel (2)

PCIe connectors

PCI Express x1 slots

PCI Express x1 slots
1
2

PCI Express x16 slots

PCI Express x16 slots
1
2

Storage properties

Nubmber of M.2 connectors

Nubmber of M.2 connectors
1
3

WiFi and Bluetooth properties

Built-in WiFi

Built-in WiFi

Bluetooth

Bluetooth

Video connections

DisplayPort connector

DisplayPort connector

HDMI connector

HDMI connector

DVI connector

DVI connector

Number of Female DVI-D Dual Link ports

Number of Female DVI-D Dual Link ports
1

VGA connector

VGA connector

Audio and Ethernet connectors

Headphone jack

Headphone jack

Number of headphone jacks

Number of headphone jacks
3

Digital optical connector

Digital optical connector

Audio processor

Audio processor
Realtek ALC892
Realtek ALC897

Number of audio channels

Number of audio channels
3

Number of subwoofer channels

Number of subwoofer channels
0

USB connectors

USB-C ports back panel

USB-C ports back panel

Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel

Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel
1

USB-A ports back panel

USB-A ports back panel

Number of USB-A 2.0 (480Mbps) ports back panel

Number of USB-A 2.0 (480Mbps) ports back panel
2

Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel

Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel
1

Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel

Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel
2

Power connectors

Fan headers

Fan headers

Number of 4-pin CPU fan headers

Number of 4-pin CPU fan headers
1

Number of 4-pin system fan headers

Number of 4-pin system fan headers
3

Number of 4-pin CPU water cooling fan headers

Number of 4-pin CPU water cooling fan headers
1

Type of power connector for motherboard

Type of power connector for motherboard
24-pin ATX connector

RGB headers

RGB headers

Number of RGB headers

Number of RGB headers
4

USB headers on the motherboard

USB headers on the motherboard

Number of USB 2.0 (480Mbps) headers on the motherboard

Number of USB 2.0 (480Mbps) headers on the motherboard
2

Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard

Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard
2

Other connectors

BIOS flash button on the motherboard

BIOS flash button on the motherboard

Clear CMOS button on the motherboard

Clear CMOS button on the motherboard

Power button on the motherboard

Power button on the motherboard

RGB lighting

RGB lighting

RGB lighting

Zones separately lit

Zones separately lit
