Allen & Heath Xone: 23



Key specs

Effects
No
Replaceable crossfader
Yes
Number of channels mixer
2

Pros and cons

According to our mixer expert
  • Pros:
    Connect up to 4 players and choose from which you mix simultaneously.
  • Pros:
    From mild to wild: use analog filters to color your mix.
  • Pros:
    Qualitative filters have frequency and resonance control.
  • Con:
    No on-board effects, but send & return for external effects.
  • Con:
    Connections for headphones are on the front. This is inconvenient in combination with a flight case.
Product Expert mixing panels

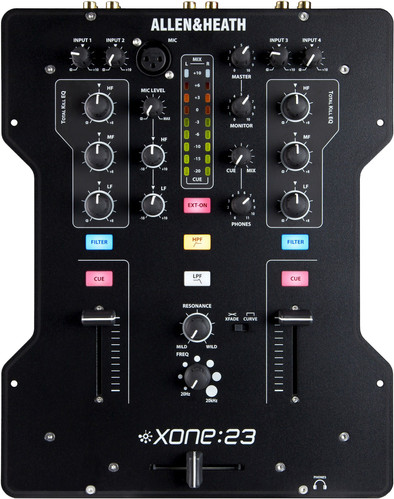

The Allen & Heath Xone: 23 is a professional analogue mixing console. This 2-channel mixer also makes A & H attractive for bedroom socks and drive-in DJs. It is a small but very solid Xone mixer with many functions. Think of the well-known Allen & Heath filters and EQ with kill function, but also with double inputs. You have the possibility to connect 2 pairs of players and to switch between the players on the Xone: 23. Also outputs are not missing. The Allen & Heat Xone: 23 has a master output (XLR), booth output (RCA / RCA) and even a record output (RCA / RCA). For external effects (FX loop), A & H even thought about send and return connections.


Included by default

  • Allen & Heath Xone: 23
  • User manual
  • Power cord


Most helpful reviews Most helpful review

  • Review score 5 out of 5 stars
    5 / 5 stars
    10,0/10
"Must have!"

By Leonardo on 4 July 2019

  • Pros:
    Functions
  • Pros:
    Dimension
  • Pros:
    Construction
  • Pros:
    Basically a 4 channel mixer
  • Con:
    None

The must have entry level and compact 2channel mixer

Specifications

Product

Product number
463165
Manufacturer code
XONE23
Brand
Allen & Heath
Warranty
2 years
Warranty type
Carry-in warranty

General properties

Type of mixer
Hybrid
DJ controller function
Yes
Integrated screen
No

Mixer

Number of channels mixer
2
Crossfader
Yes
Adjustable curve crossfader
Yes
Replaceable crossfader
Yes
Equalizer per channel
Yes, 3 bands
Kill function per EQ
Yes
Gain control per channel
Yes
Number of channels mixer - option
2

Filters, effecten, samples en loops

Filters
Yes
Filter curve
Low pass, High pass
Effects
No
Loop function
No

Audio interface

Integrated audio interface
No
Audio interface type
None
Sample frequencies
Audio bit depth
Frequency response
Signal-to-noise ratio

Wired audio connectors

Headphone jack
Yes
Type of headphone connection
3.5mm mini jack, 6.3mm jack
Number of headphone jacks
2
6.3mm jack line connector
No
3.5mm mini-jack connector
No
RCA connector
Yes
Number of stereo RCA outputs (back)
2
Number of stereo RCA line outputs
2
Stereo RCA phono connector
Yes
Number of RCA phono connectors
2
Number of stereo RCA line inputs
2
XLR line connector
Yes
Neutrik XLR connector
Yes
Microphone connection
Yes
Number of microphone connectors
1
Type of microphone connection
XLR
Digital optical connection
No
Digital coaxial connector
No

MIDI connections

MIDI-ingang
No
MIDI-uitgang
No
MIDI-doorvoer
No

USB connectors

USB port
No

Power supply

Power source
Yes
Power supply type
Grid current

Physical properties

Depth
37 cm
Height
23 cm
Width
50 cm
Weight
2,7 kg
Material
Metal
