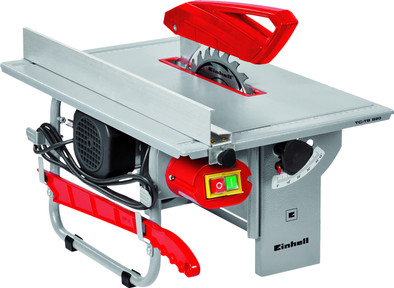

Einhell TH-TS 820
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our table saw expert
The Einhell TH-TS 820 is a user-friendly table saw with 200 millimeter blades, which you can use for light DIY jobs. The possibility of tilting the blade 45 ° ensures that you also cut in half with this 800 watt saw. In this position you saw up to 35 millimeters depth and the blade is straight, then you cut to a depth of 43 millimeters. You have a table size of 500 x 335 millimeters at your disposal so that cutting wider pieces is no problem. The saw table is a little 30 centimeters high and can not be adjusted in height. The parallel guides and the push rod combine for precision and safety and with the standard 20-tooth saw blade you can get started right away.
Saw blade diameter | 200 mm | |
|---|---|---|
Power | 800 W | |
Laser guide | ||
Maximum cutting depth 45° (slant) | 35 mm | |
Maximum cutting depth 90° (straight) | 43 mm | |
Connection for vacuum |
5 stars
7
4 stars
7
3 stars
2
2 stars
0
1 star
1
The table circular saw works fine, a tip is: "don't let the saw stand loose, secure it on, for example, a table" because when you push, the saw still wants to move.
Marc van den Eijnden
3 October 2016
Automatically translated from Dutch
Super easy and does what it's supposed to do
Angelique Doree
12 October 2018
Automatically translated from Dutch
The saw cuts, but that's about it. Quality is also low. Guide is not stable and cannot be fixed properly, so it is certainly not a precision tool.
Karim Hajou
7 January 2018
Automatically translated from Dutch
Product number | 675016 | |
|---|---|---|
Manufacturer code | 4340410 | |
Brand | Einhell | |
Warranty | 2 years | |
Processing of your defect | Carry-in warranty | |
Old product returned for free |
Speed | 2950 rpm | |
|---|---|---|
Laser guide | ||
Connection for vacuum | ||
Type of saw blade | Circular saw blades | |
Saw blade diameter | 200 mm | |
Diameter arbor hole | 16 mm | |
Number of teeth (numerical) | 20 | |
Saw blade thickness (numerical) | 2,4 mm | |
Tiltable saw head | Tiltable to one side | |
Maximum cutting depth 45° (slant) | 35 mm | |
Maximum saw blade incline left | 45 ° | |
Maximum cutting depth 90° (straight) | 43 mm | |
Including underframe | ||
Table extension | ||
Maximum worktop length | 525 mm | |
Maximum worktop width | 358 mm | |
Including push stick | ||
Including parallel guide | ||
Including miter guide | ||
Worktop standard length | 335 cm | |
Worktop standard width | 200 cm | |
Suitable for (surface) | Hard wood , MDF, Plastics, Wood | |
Type of DIYer | Occasional handyman |
Power supply type | Power grid | |
|---|---|---|
Cable length | 1,5 m | |
Connection voltage | 220 - 240 V |
Weight | 10,1 kg |
|---|
