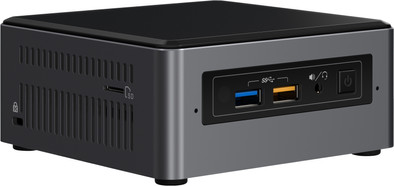

Intel Baby Canyon NUC7i7BNH
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our barebone expert
The Intel NUC7i7BNH barebone has a powerful shared video card and i7 processor. This makes it suitable for coding programs or editing HD videos. You can place a 2.5-inch HDD or SSD in this NUC in addition to an M.2 SSD. That way, you won't run out of space any time soon despite all your RAW photos. Edit and render your latest 3D animation, and relax at the end of the day with an exciting movie in 4K. The Intel Optane memory ensures better cooperation between the RAM and the hard drive, which means Windows 10 and all your programs will boot just a bit more quickly. Thanks to the Thunderbolt 3 input, you can transfer video files up to 8 times faster than with USB 3.0. Since the compact size makes it no bigger than a lunchbox, you can neatly keep it on your desk.
Processor family | Core i7 | |
|---|---|---|
Built-in WiFi | ||
Memory type | DDR4 | |
Maximum internal memory | 32 GB | |
Number of HDMI connectors | 1 | |
Bluetooth | ||
Integrated video card |
5 stars
11
4 stars
3
3 stars
3
2 stars
0
1 star
0
Best NUC for programming and entertainment. It currently replaces my desktop and laptop. My configuration
I7 processor 32GB RAM 512GB SATA SSD
My advice is to buy 2 chargers, so you don't have to store the charger from home to office and back
Fan sound is better with the latest bios update much better than before
Vink
7 June 2017
Automatically translated from Dutch
A positive surprise in (almost) every way. Bought as barebone, with 16 GB (1 strip) of RAM in addition, an additional 16 GB can be added if needed. Windows 10 pro license bought separately, could be a lot cheaper than with Cool blue. I already had a 2.5 inch SSD and also an msata disk, but it does not fit, is already an outdated connection, pffffff So looking for an m2 ssd, for next to my 2.5 inch ssd. seems to be up to 4x faster than an msata ssd. that msata hard disk of 250 GB of 2.5 cm by 2 cm, sometimes comes in handy.
If Windows is installed, download some drivers from Intel because Windows 10 doesn't recognize all that modern stuff, ha ha!!
The GPU supplied on the CPU is not for very fast modern games, but Fallout 4, Skyrim Special Edition or a classic like Napoleon: Total War run smoothly. But you can also run 4K video or just Full HD without any problems. At home he stands next to a 27 inch full hd screen
With the thunderbird connection it is even possible to connect an external top video card, via a separate cabinet for video cards. But I didn't buy it for that.
I think the size 11 x 11 x 5 cm is fantastic, especially when you see all the hardware that is already in it, or can be done in it. In the past, you had to screw an extra card into the PC for everything. for Sound, image, scsi scanner or hard disk
The external power supply is also quite small in size, so you can even take a PC with you in a lady's bag.
I once bought a roll-up keyboard (bluetooth) just for fun, so everything fits in my backpack. You can connect it to a TV via HDMI, so with a bit of luck you don't have to take a screen with you.
I used to drag my PC every week (early 90s) to the computer club, for instruction and entertainment. Large cabinet, large 17 inch screen with a big horn behind it Separate speakers, keyboard and mouse. Had to walk three times to the car to get everything ready. When I think about that and see how it can be done now.....
peter bloem
11 July 2017
Automatically translated from Dutch
The large form factor leaves room for a second hard drive in the housing. It is recommended to flash the bios to the most recent version due to the recently discovered Hyperthreading bug. Very happy with so much power per square centimeter, but a pity that the iris 650 gpu is still a bit slow for my purposes.
Martijn de Boer
7 July 2017
Automatically translated from Dutch
Product number | 773188 | |
|---|---|---|
Manufacturer code | BOXNUC7i7BNH | |
Brand | Intel | |
Warranty | 3 years | |
Processing of your defect | Carry-in warranty | |
Old product returned for free |
Processor brand | Intel | |
|---|---|---|
Processor family | Core i7 | |
Processor code name | Kaby Lake | |
Processor number | 7567U | |
Processor cores | Dual-Core (2) |
Clock speed | 3500 MHz | |
|---|---|---|
Overclockable | ||
Turbo speed | 4000 MHz | |
Cache memory | 4 MB |
Memory type | DDR4 | |
|---|---|---|
Total number of RAM slots | 2 | |
Maximum internal memory | 32 GB | |
Voltage RAM | 1.2V |
Integrated video card | ||
|---|---|---|
Chipset brand | Intel | |
GPU chipset number | Intel Iris Plus Graphics 650 |
M.2 SSD connector type | M |
|---|
Bluetooth | ||
|---|---|---|
Built-in WiFi | ||
WiFi standards | Wireless AC | |
Number of Ethernet ports | 1 |
HDMI connector | ||
|---|---|---|
Number of Female HDMI type A 1.4 ports | 1 | |
DisplayPort connector | ||
Thunderbolt connector | ||
Number of Female Thunderbolt 3 (USB-C) ports | 1 |
Headphone jack | ||
|---|---|---|
Number of female 3.5mm TS Audio Jack ports | 1 | |
Microphone connector | ||
Number of microphone connectors | 1 | |
Type of microphone connection | 3.5mm jack | |
Digital optical connector |
Width | 11,5 cm |
|---|---|
Height | 5,1 cm |
Depth | 11,1 cm |
Weight | 0,5 kg |
Color | Gray |
Material | Metal |
