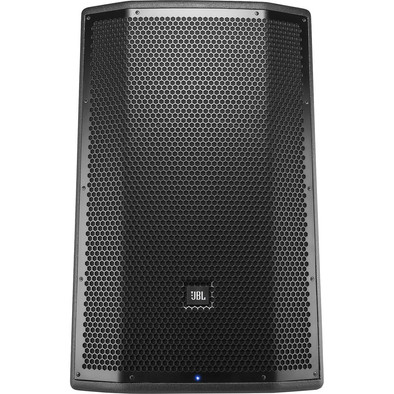

JBL PRX815W (single)

JBL PRX815W (single)

Never available again

View alternatives below View alternatives in the sidebar

This product is currently retired. Fortunately, we have a lot of new, similar models. Check out the assortment and find the product that suits you.




Product information

Key specs

Active speaker
Yes
Maximum SPL
137 dB
Dimension speaker tweeter (inches)
1,5 inch
Speaker woofer diameter (inches)
15 inches
Frequency range
50 - 20000 Hz

Pros and cons

According to our pro audio full-range speaker expert
  • Thanks to the PRX Connect application, you can tune the sound to the location with an equalizer.
  • Due to the dbx Type IV limiting technology, the sound is also detailed at high volume.
  • Because it is an active speaker, you do not need an amplifier.
  • To access the extensive equalizer options you need a smartphone or tablet.
Product Expert pro audio full-range speakers

Description

With the JBL PRX815W you fill spaces such as canteens and small rooms with a clear sound. Thanks to the PRX Connect application for your smartphone or tablet, you can easily adjust the sound to the room where you play. Through the application you have access to an 8 band equalizer with which you adjust the sound down to the smallest detail. The active full range speaker features a 15 inch woofer and a 1.5 inch tweeter. These are powered by a Class D amplifier. This ensures you a powerful sound. The dbx Type IV limiting technology ensures that the sound remains detailed at a high volume. Do you want to connect a second speaker? You do this easily via the line out connection.

With the JBL PRX815W you fill spaces such as canteens and small rooms with a clear sound. Thanks to the PRX Connect application for your smartphone or tablet, you can easily adjust the sound to the room where you play. Through the application you have access to an 8 band equalizer with which you adjust the sound down to the smallest detail. The active full range speaker features a 15 inch woofer and a 1.5 inch tweeter. These are powered by a Class D amplifier. This ensures you a powerful sound. The dbx Type IV limiting technology ensures that the sound remains detailed at a high volume. Do you want to connect a second speaker? You do this easily via the line out connection.


Included by default

  • Manual
  • power cable

Included by default

  • Manual
  • power cable

Key specs

Active speaker
Yes
Maximum SPL
137 dB
Dimension speaker tweeter (inches)
1,5 inch
Speaker woofer diameter (inches)
15 inches
Frequency range
50 - 20000 Hz

Specifications

Product

Product number
776897
Manufacturer code
PRX815W
Brand
JBL
Warranty
2 years
Warranty type
Carry-in warranty
Old product returned for free
Yes

General properties

Active speaker
Yes
Speaker woofer diameter (inches)
15 inches
Dimension speaker tweeter (inches)
1,5 inch
Speaker audio crossover
2-way
Display
No
Ingebouwde limiter
Yes
Digital Signal Processing (DSP)
Yes
Volume control speaker(s)
Yes
Volume controls location
Back
Speaker coverage horizontal
50 °
Speaker coverage vertical
90 °

Audio performances

Frequency range
50 - 20000 Hz
Peak voltage total
3000 W
Maximum SPL
137 dB
Power in RMS
1500 W
Preamp type
Class D
Crossover frequency range
1850 Hz
Aantal ingebouwde versterkers
2

Wired audio connectors

XLR line connector
Yes
RCA connector
Yes
Number of stereo RCA line outputs
0
Number of stereo RCA line inputs
2
Number of 6.3mm inputs
2
Number of 6.3mm outputs
0

Equalizer

Number of equalizer bands
8

Power supply

Power supply connector for speakers
Euro C13
Power loop
No

Water resistant

Water-resistant
No

Transport and attachment

Tripod adapter
36 mm
Wheels
No
Fly points
M10

Physical properties

Width
446 mm
Depth
359 mm
Height
701 mm
Weight
21,6 kg
Material
Wood
Color
Silver
