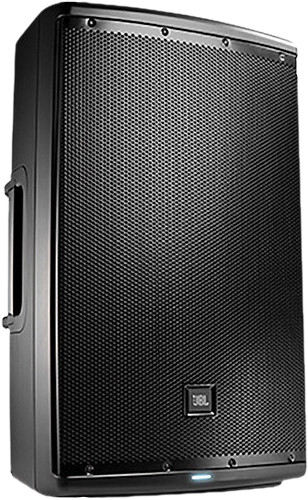

JBL EON615 (single)
Never available again
View alternatives in the sidebar
Specifications
Product
Product number | 777223 | |
|---|---|---|
Manufacturer code | EON615 | |
Brand | JBL | |
Processing of your defect | Carry-in warranty | |
Old product returned for free |
General properties
Active speaker | ||
|---|---|---|
Speaker woofer diameter (inches) | 15 inches | |
Dimension speaker tweeter (inches) | 1,5 inches | |
Speaker audio crossover | 2-way | |
Display | ||
Integrated limiter | ||
Digital Signal Processing (DSP) | ||
Volume control speaker(s) | ||
Volume controls location | Back | |
Speaker coverage horizontal | 60 ° | |
Speaker coverage vertical | 90 ° |
Audio performances
Frequency range | 38 - 20000 Hz | |
|---|---|---|
Total peak power | 1000 W | |
Continuous/nominal total output capacity (RMS) | 500 W | |
Maximum SPL | 127 dB | |
Power in RMS | 500 W | |
Preamp type | Class D | |
Number of integrated amplifiers | 2 |
Wired audio connectors
XLR line connector | ||
|---|---|---|
Number of XLR inputs | 2 | |
Number of XLR outputs | 1 | |
RCA connector | ||
6.3mm jack line connector | ||
Number of 6.3mm inputs | 2 | |
Number of 6.3mm outputs | 0 |
Equalizer
Number of equalizer bands | 5 | |
|---|---|---|
Number of equalizer presets | 5 |
Power supply
Power supply connector for speakers | Powercon | |
|---|---|---|
Power loop |
Water-resistant
Water-resistant |
|---|
Transport and attachment
Tripod adapter | 36 mm | |
|---|---|---|
Wheels | ||
Fly points | M10 |
Physical properties
Width | 42,9 cm | |
|---|---|---|
Depth | 36,8 cm | |
Height | 70,8 cm | |
Weight | 17,7 kg | |
Material | Plastic | |
Color | Black |
