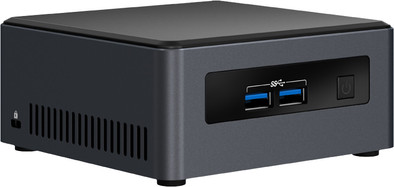

Intel Dawson Canyon NUC7i7DNHE Kit
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our barebone expert
The Intel Dawson Canyon NUC7i7DNHE is a mini computer for business use. Thanks to its small size, you can use this barebone to create a compact workplace. You can easily place the mini PC wherever you want. If there's no room, you can even mount it directly behind the screen. This way, there won't be a PC on your desk. The Intel Core i7 processor is powerful enough for demanding tasks, such as video editing in HD and 4K and calculating comprehensive PivotTables. You can install up to 32GB RAM on this barebone.
Processor family | Core i7 | |
|---|---|---|
Built-in WiFi | ||
Memory type | DDR4 | |
Maximum internal memory | 32 GB | |
Type of SSD | M.2 SATA (B+M key) | |
Number of HDMI connectors | 2 | |
Bluetooth | ||
Integrated video card |
5 stars
1
4 stars
2
3 stars
0
2 stars
0
1 star
0
Finally! I've never compiled software so quickly. One blink and the Library flies by. Linux is fully started in 2 seconds thanks to fastboot. Too bad there is no audio jack.
Nick
22 February 2020
Automatically translated from Dutch
I'm using this as a home server with ESXi. Unfortunately, the USB connections are very close to each other, so you can only use 1 USB stick at the back. Further great!
Luc van Hemert
5 June 2019
Automatically translated from Dutch
Nice compact PC for a home workplace. This type has 2 HDMI connections, so connecting 2 screens is a piece of cake. Unfortunately, the fan is very present, it does its best. Don't expect a big gaming PC, the video card is not that much. But very suitable for business use or as a compact server.
Eddy Sloterwijk
11 July 2019
Automatically translated from Dutch
Product number | 816087 | |
|---|---|---|
Manufacturer code | BLKNUC7I7DNH2E | |
Brand | Intel | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
Processor brand | Intel | |
|---|---|---|
Processor family | Core i7 | |
Processor code name | Coffee Lake | |
Processor number | 8650U | |
Processor cores | Quad-Core (4) |
Clock speed | 1900 MHz | |
|---|---|---|
Overclockable | ||
Turbo speed | 4200 MHz | |
Cache memory | 8 MB |
Memory type | DDR4 | |
|---|---|---|
Total number of RAM slots | 2 | |
Maximum internal memory | 32 GB | |
Voltage RAM | 1.2V |
Integrated video card | ||
|---|---|---|
Chipset brand | Intel | |
GPU chipset number | Intel UHD Graphics 620 |
M.2 SSD connector type | M |
|---|
Bluetooth | ||
|---|---|---|
Bluetooth version | 4.2 | |
Built-in WiFi | ||
WiFi standards | Wireless AC, Wireless G, Wireless N | |
Number of Ethernet ports | 1 |
HDMI connector | ||
|---|---|---|
Number of Female HDMI type A 1.4 ports | 2 | |
DisplayPort connector | ||
Thunderbolt connector |
Headphone jack | |
|---|---|
Microphone connector |
Width | 11,5 cm |
|---|---|
Height | 5,1 cm |
Depth | 11,1 cm |
Weight | 0,65 kg |
Color | Black, Gray |
Material | Plastic |
