MSI MAG Z390 Tomahawk
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
Socket (CPU) | 1151 (8th + 9th gen Intel) | |
|---|---|---|
Motherboard chipset | Intel Z390 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 2 | |
PCI Express x16 slots | 3 | |
Built-in WiFi | ||
Number of Ethernet ports | 2 |
According to our motherboard expert

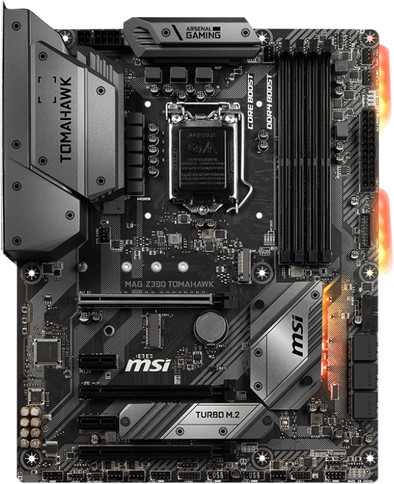

The MSI MAG Z390 Tomahawk is an ATX motherboard for gamers. The LGA 1151 (V2) socket is suitable for 8th and 9th generation Intel Core processors. The built-in heatsinks cool the chipset, I/O hub, VRMs, and one of the two M.2 SSDs slots. With these M.2 slots and 6 SATA ports, you can create a RAID 0, 1, or 10 setup. Thanks to 2 Ethernet ports, you can double the maximum internet speed. Install 4 RAM modules for a maximum internal memory of 64GB. You can place almost any video card in the PCIe x16 slot. It's made of steel, so it doesn't bend. You can set the color of the RGB LED lighting yourself via MSI Mystic Light.
5 stars
1
4 stars
1
3 stars
0
2 stars
0
1 star
0
I think it's a nice design and it's easy to connect whether you have a mini case or not.
Andy Tanghe
1 April 2020
Automatically translated from Dutch
Excellent motherboard, 2 m.2 connections and space for a pcie network card. performance is also good. Effortlessly overclocks the i5 8600K to: 5.0Ghz
Jelle
5 September 2020
Automatically translated from Dutch
Coolblue takes care of everything, from taking out an insurance to repairs
For almost all accidents
More coverage in case of damage than your standard warranty
No deductible
First, add your motherboard to your shopping cart. On the next page, choose the Protection Plan below. You always have a 30-day return window and pay no deductible in case of damage.
2-year Protection Plan
7,99
one-time3-year Protection Plan
8,99
one-time
Product number | 855323 | |
|---|---|---|
Manufacturer code | 7B18-001R | |
Brand | MSI | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
Form factor (motherboards) | ATX |
|---|
Motherboard chipset | Intel Z390 | |
|---|---|---|
Socket (CPU) | 1151 (8th + 9th gen Intel) | |
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Voltage RAM | 1.35V | |
Memory speed | 4400 Hz | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 2 | |
|---|---|---|
PCI Express x16 slots | 3 |
Nubmber of M.2 connectors | 2 |
|---|
Built-in WiFi | ||
|---|---|---|
Bluetooth |
DisplayPort connector | ||
|---|---|---|
HDMI connector | ||
DVI connector | ||
VGA connector |
Headphone jack | ||
|---|---|---|
Number of headphone jacks | 5 | |
Digital optical connector | ||
Number of digital optical inputs | 0 | |
Number of digital optical outputs | 1 | |
Audio processor | Realtek ALC892 | |
Number of audio channels | 5 | |
Number of subwoofer channels | 1 |
Number of colors lighting | 16.8 million | |
|---|---|---|
Zones separately lit | ||
Lighting connectable with peripherals | ||
Zone lighting | Front, Logo, Side(s) |
