Gigabyte Z690 AORUS ELITE DDR4
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th generation Intel processors with a 1700 socket.

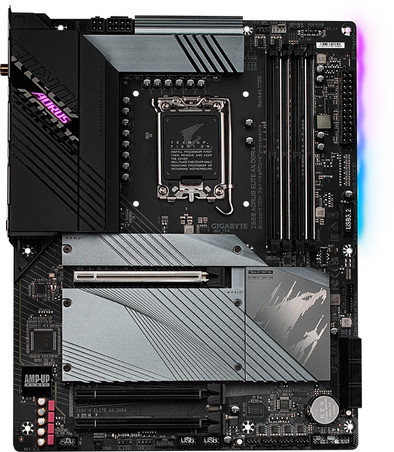

Upgrade your gaming build with the Gigabyte Z690 AORUS ELITE DDR4. This ATX motherboard has the LGA1700 socket and Z690 chip set for use with a 12th generation Intel processor. You can install up to 128GB RAM spread out over 4 DDR4 memory slots. As a result, you get to combine the power of the new CPUs with your current DDR4 RAM modules. In addition, you can set up super fast storage, because there's room for 4 M.2 SSDs in the PCIe 4.0 slots. This will make long loading times a thing of the past. The AORUS ELITE DDR4 has multiple heatsinks and 6 temperature sensors for an active dissipation of heat and warm air. That way, your components stay well protected and your motherboard always knows when the temperature is increasing too much. Your internet connection reaches up to 2.4Gbps via both the LAN port and the built-in WiFi 6E module. That means you're always guaranteed to have a fast internet connection.
Socket (CPU) | 1700 (12th gen Intel) | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 1 | |
Built-in WiFi | ||
Number of Ethernet ports | 1 |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 901850 | |
|---|---|---|
Manufacturer code | Z690 AORUS ELITE DDR4 | |
Brand | Gigabyte | |
Warranty | 3 years | |
Processing of your defect | At your home | |
Old product returned for free |
Suitable casings | Full Tower, Mid Tower | |
|---|---|---|
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Socket (CPU) | 1700 (12th gen Intel) | |
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR4 | |
Memory speed | 4800 Hz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 0 | |
|---|---|---|
PCI Express x16 slots | 1 |
Nubmber of M.2 connectors | 4 |
|---|
Built-in WiFi | ||
|---|---|---|
Bluetooth |
DisplayPort connector | |
|---|---|
HDMI connector | |
DVI connector | |
VGA connector |
Headphone jack | ||
|---|---|---|
Number of headphone jacks | 1 | |
Digital optical connector | ||
Number of digital optical outputs | 1 | |
Number of audio channels | 5 | |
Number of subwoofer channels | 1 |
Number of colors lighting | 16.8 million | |
|---|---|---|
Zones separately lit | ||
Lighting connectable with peripherals | ||
Zone lighting | Front, Logo, Side(s) |
