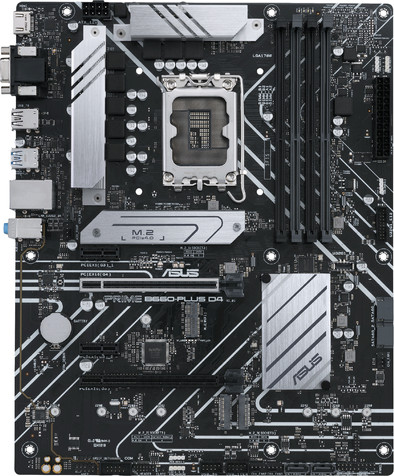

ASUS PRIME B660-PLUS D4
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note:This motherboard only works with 12th generation Intel processors, with a 1700 socket.
With the ASUS Prime B660-Plus D4 you can build your PC for the future. This ATX motherboard has the LGA1700 socket and B660 chipset, specifically for the 12th generation Intel processors. This motherboard has room for 128GB RAM, spread over 4 DDR4 slots. Still need more storage? Expand your storage with a PCIe 5.0 SSD and 3 PCIe 4.0 M.2 slots. With the integrated I/O Shield you can protect the connectors on your motherboard. Multiple heatsinks quickly dissipate the warm air, so you and your PC can keep your cool. With the 2.5GBit Ethernet port, you have a superfast wired internet connection. In addition, there's still enough space at the back for your accessories because of the 7 USB ports, so you can connect everything. Make a true rainbow out of your setup with 16.8 million colors of lighting.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
|---|---|---|
Motherboard chipset | Intel B660 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 3 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Number of Ethernet ports | 1 |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 912407 | |
|---|---|---|
Manufacturer code | 90MB18X0-M0EAY0 | |
Brand | ASUS | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
Suitable casings | Full Tower, Mid Tower | |
|---|---|---|
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel B660 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR4 | |
Voltage RAM | 1.35V | |
Maximum memory speed | 5066 Hz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 2 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 4.0 (x16/x16) connectors | 1 |
Nubmber of M.2 connectors | 3 | |
|---|---|---|
Number of M-key (PCIe 4.0) slots | 3 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
|---|---|---|
Bluetooth |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 1 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 2 |
Ethernet port | ||
|---|---|---|
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek Audio Codec |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 3 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
RGB headers | |
Number of RGB headers | 5 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
