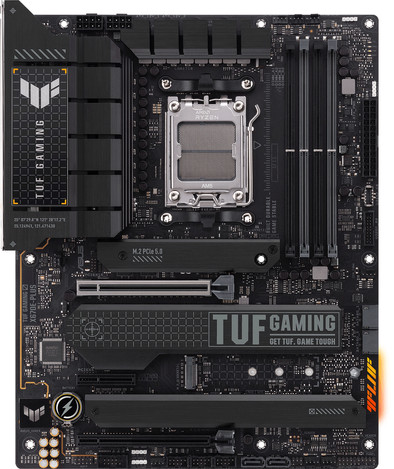

ASUS TUF GAMING X670-E PLUS
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with AMD Ryzen 7000 processors, with an AM5 socket.
You can combine future-proofness and sturdy build quality with the ASUS TUF GAMING X670E-PLUS. This ATX motherboard has room for 4 DIMM RAM modules with DDR5 support up to 6400MHz. This way, you can create fast and powerful RAM up to 128GB. This motherboard has room for 4 M.2 SSDs, so you create future-proof storage space. One of these M.2 slots offers PCIe 5.0 support, so you can work with even faster SSDs. The X670 chipset is designed to work with AMD Ryzen 7000 series processors. In other words, you're ready for a new AMD build with this motherboard. As part of the X670 chipset, this motherboard is also suitable for overclocking. The design of this TUF GAMING motherboard provides algorithms for overclocking as well as cooling. This allows you to accurately track the performance and the heatsinks draw away the heat actively. As a result, your components stay properly cooled. For your internet, the 2.5Gbps Ethernet port provides a powerful and stable internet connection. If you want to connect your accessories, you have plenty of ports to choose from. You connect a monitor via the DisplayPort 1.4 or HDMI 2.1 port, and your essentials via the many USB 3.2 Gen 2 ports.
Socket (CPU) | AM5 (7th gen AMD) | |
|---|---|---|
Motherboard chipset | AMD X670 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 3 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 916763 | |
|---|---|---|
Manufacturer code | 90MB1BJ0-M0EAY0 | |
Brand | ASUS | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Revision | 1.0 | |
TPM (Trusted platform module) | ||
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | AMD | |
|---|---|---|
Motherboard chipset | AMD X670 | |
Socket (CPU) | AM5 (7th gen AMD) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 4800 MHz | |
Maximum memory speed | 6400 MHz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 0 | |
|---|---|---|
PCI Express x16 slots | 3 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 4 | |
Number of M-key (PCIe 5.0) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
|---|---|---|
Bluetooth |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 5 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 3 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek S12220A |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin CPU optional headers | 1 |
Number of 4-pin system fan headers | 4 |
Number of 4-pin CPU water cooling fan headers | 2 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 6 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 16 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Number of colors lighting | Multicolor | |
Color lighting | RGB | |
Zones separately lit |
