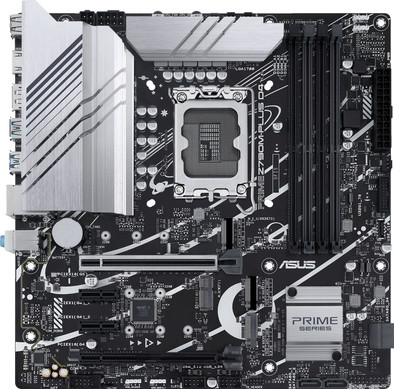

ASUS PRIME Z790M-PLUS D4 DDR4
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th and 13th generation Intel processors, with a 1700 socket. In addition, this motherboard only works with DDR4 RAM.
Build a powerful gaming PC with the ASUS PRIME Z790M-PLUS D4 DDR4. This mini ATX motherboard has the LGA1700 socket and Z790 chipset, which you can use with 12th and 13th generation Intel processors. Place up to 128GB DDR4 RAM on this motherboard via the 4 DIMM slots. Do you want a fast storage in addition to high RAM? No worries, you get 3 M.2 slots, so it's easy to place multiple NVMe SSDs on the motherboard. As part of the Z790 series, this motherboard is suitable for overclocking. You have plenty of options for active cooling thanks to the heatsinks and CPU fan headers. This way, you keep your components cool, so you can stay focused on your game. Want to connect it to the internet? This motherboard provides a powerful 1Gbps Ethernet port, so you create a stable internet connection. To connect your accessories and components, you have plenty of choice. On the I/O shield, you'll find 6 USB 3.2 ports and 2 USB 2.0 at the back, of which 2 USB-C 3.2 ports. This means you never have to choose between which accessories you want to connect. Do you want to monitor the performance? This motherboard offers various software programs to cool and optimize your audio, for example. As a result, you adjust all settings to your own liking.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Motherboard chipset | Intel Z790 | |
Form factor (motherboards) | MicroATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 3 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 916771 | |
Manufacturer code | 90MB1D20-M0EAY0 | |
Brand | ASUS | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
Compatible with Windows version | Windows 10, Windows 11 | |
Revision | 1.0 | |
Suitable casings | Full Tower, Mid Tower, Mini Tower | |
Form factor (motherboards) | MicroATX |
Chipset brand | Intel | |
Motherboard chipset | Intel Z790 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
Memory type | DDR4 | |
Memory speed | 2133 MHz | |
Maximum memory speed | 5333 MHz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 2 | |
Version PCIe x1 slots | PCIe 4.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
Nubmber of M.2 connectors | 3 | |
Number of cooled M.2 SSD slots | 0 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
Bluetooth |
DisplayPort connector | |
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Headphone jack | |
Microphone connector | |
Number of microphone connectors | 1 |
Ethernet port | |
Number of 1Gb/s Ethernet ports | 1 |
Digital optical connector |
Fan headers | |
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin CPU optional headers | 1 |
Number of 4-pin system fan headers | 3 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
RGB headers | |
Number of RGB headers | 3 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
USB-A ports on the motherboard | 1 |
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting |
