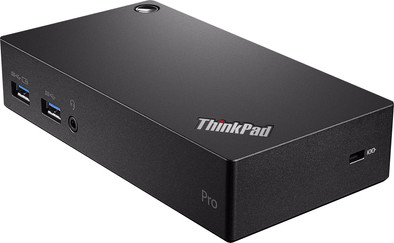

Lenovo ThinkPad USB 3.0 Pro Dock 40A70045EU
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our dock for laptops expert
The Lenovo ThinkPad USB 3.0 Pro Dock 40A70045EU is the foundation of your workplace centered around your ThinkPad laptop. You can easily connect your laptop via a USB 3.0 port to directly connect with all your peripherals. Connect two monitors via the DisplayPort and DVI-I connectors. Don't have a DVI, but your monitor has a VGA connector? No worries, because a DVI to VGA adapter is included by default, so you can easily connect your VGA cable. To charge your peripherals, such as your phone, there's a USB 3.0 port with charger function. A mouse and keyboard can easily be connected via USB and for a wired Internet connection, the dock has an Ethernet connector.
Maximum resolution DisplayPort: 3840x2160
Maximum resolution DVI: 2560x1440
Type of main connector | USB-A | |
|---|---|---|
Number of connectable monitors | 2 | |
Type of USB port | Standard USB-A, Standard USB-B (3.0 form) | |
Cable length | 0,5 m |
5 stars
2
4 stars
1
3 stars
0
2 stars
0
1 star
1
User friendliness
Price-quality ratio
Durability
Great device. Meets the expectation.
jeroen hoogland
1 June 2018
Automatically translated from Dutch
I actually already had one and the same for work. (from the store) The second one via Cool blue is for my home workplace. (declare at work) I had already arranged the second power adapter (also for home) elsewhere, because Coo blue did not have the relevant type. Now all I have to do is travel with my (work) laptop. Saves weight with lugging. The quick connection and disconnection of your laptop is also very pleasant. (only 2 cables. Power and Dock)
Hans Vroegh
20 June 2018
Automatically translated from Dutch
Very cumbersome and tedious dock
Tom op de Beeck
2 April 2019
Product number | 768706 | |
|---|---|---|
Manufacturer code | 40A70045EU | |
Brand | Lenovo | |
Warranty | 2 years | |
Processing of your defect | Carry-in warranty | |
Old product returned for free |
Made for laptop models | Apple MacBook, Chromebook, Microsoft Surface, Windows laptop |
|---|
Laptop docking station suitable for | Connect 2 monitors, Connect mouse and/or keyboard, [Charge phone], [Connect Headphones], [Work with wired internet] | |
|---|---|---|
Type of main connector | USB-A | |
Number of USB ports | 6 | |
USB function | Charging an external device, Data transfer, Device connection, Record audio, Software updates | |
Type of USB port | Standard USB-A, Standard USB-B (3.0 form) | |
Number of female standard USB-A ports | 5 | |
Female standard USB-A port version | 2.0, 3.0 | |
Number of female standard USB-B (3.0 form) ports | 1 | |
Female standard USB-B (3.0 form) port version | 3.0 | |
Number of Ethernet ports | 1 | |
Ethernet speed | Gigabit Ethernet (1000Mbps) | |
Number of DVI outputs | 1 | |
Type of DVI connector | DVI-D Dual Link (digital only) | |
Number of Female DVI-D Dual Link ports | 1 | |
Number of Female DVI-I Dual Link ports | 1 | |
Type of DisplayPort connector | standard DisplayPort | |
Number of Female Standard DisplayPort 1.2 ports | 1 | |
Version Female Standard DisplayPort port | 1.2 | |
Number of headphone jacks | 1 | |
Type of headphone connection | 3.5mm (TS) | |
Number of connectable monitors | 2 |
Cable length | 0,5 m | |
|---|---|---|
Color | Black |
