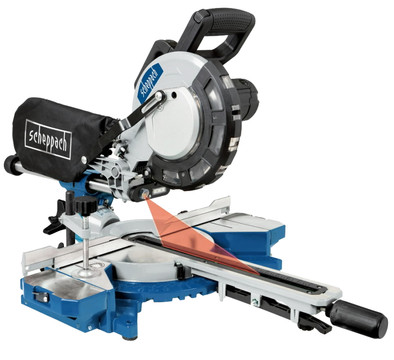

Scheppach HM216
Alternatives
|
Current product
Scheppach HM216
|
||||
| Price | 169,99 | 169,99 | 176,99 | 199,99 |
|---|---|---|---|---|
| Pull function | Yes | No | Yes | Yes |
| Tiltable saw head | Tiltable to both sides | Tiltable to one side | Tiltable to one side | Tiltable to one side |
| Maximum saw width 90° (straight) | 340 mm | 120 mm | 305 mm | 310 mm |
Product information
Pros and cons
According to our radial arm saw expert
-
Thanks to the pull function, the radial arm saw is suitable for sawing wider beams and plate material.
-
The laser guide is a useful aid for making straight cuts.
-
An underframe isn't included, which makes it more difficult to work at an ideal height.
Description
Included by default
-
Manual (8.5 MB)
- Saw blade (2x)
Specifications
Product
- Product number
- 868928
- Manufacturer code
- 5901215903
- Brand
- Scheppach
- Warranty
- 2 years
- Warranty type
- Carry-in warranty
- Old product returned for free
Physical properties
- Weight
- 12 kg
- Height
- 50,5 cm
- Depth
- 73,5 cm
- Width
- 59,3 cm
Power supply
- Power supply type
- Grid current
- Cable length
- 4 m
- Connection voltage
- 240 V
- Power
- 2000 W
Sawing properties
- Revolutions per minute (RPM)
- 7100 rpm
- Pull function
- Conductor
- Conductor type
- Laser guide
- Power source conductor
- Via main model
- Softstart
- Flipover saw
- Connection for vacuum
- Type of dust extraction
- Dust bag/cup
- Saw blade diameter
- 216 mm
- Diameter arbor hole
- 30 mm
- Tiltable saw head
- Tiltable to both sides
- Maximum saw depth 45° (slant)
- 38 mm
- Maximum saw blade incline left
- 45 °
- Maximum saw width 45° (slant)
- 240 mm
- Maximum saw depth 90° (straight)
- 65 mm
- Maximum saw width 90° (straight)
- 340 mm
- Including underframe
- Table extension
- Includes saw blade
- Number of teeth (numerical)
- 24
- Suitable for (surface)
- Hard wood , Laminate, Plastics, Wood
- Saw blade thickness (numerical)
- 2,8 m
- Type DIYer
- Devoted DIYer
