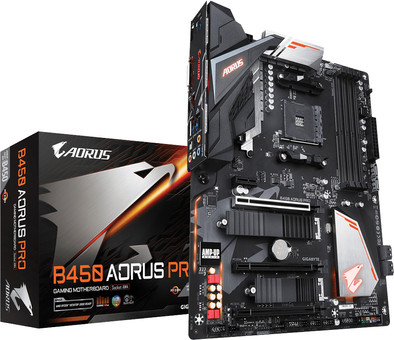

Gigabyte B450 Aorus PRO
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
This motherboard works with 1st, 2nd, 3rd, and 5th generation AMD Ryzen processors, with an AM4 socket.
GIGABYTE B450 Aorus PRO is a motherboard for gamers. Thanks to the AMD B450 chipset, you can place AMD Ryzen processors of the 2nd generation on this motherboard. The smart fan controller on this motherboard allows you to effortlessly control the fans in your system. This even happens automatically with the 2 sensors on the motherboard. You can place 2 M.2 SSD drives on the motherboard and your games and apps start up up to 3 times faster than with a regular SSD. The heatsink ensures that your M.2 SSDs doesn't get too hot. Thanks to the audio equipment on the board, you're surrounded by the sound of your favorite games. The motherboard is designed to withstand damage from air, moisture, and heat.
Socket (CPU) | AM4 (1st gen AMD), AM4 (2nd gen AMD), AM4 (3rd gen AMD), AM4 (5th gen AMD) | |
|---|---|---|
Motherboard chipset | AMD B450 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 2 | |
PCI Express x16 slots | 1 | |
Number of Ethernet ports | 1 |
5 stars
4
4 stars
2
3 stars
0
2 stars
0
1 star
0
Product works properly, it has a very good onboard sound card.
oscar zijtsel
10 March 2019
Automatically translated from Dutch
Easy to mount motherboard with enough space for expansion cards.
Maria Knockaert
12 August 2019
Automatically translated from Dutch
Due to the dynamic VCore, CPU overclocking is easy and difficult at the same time. A low overclock is easy to apply, but to go to the extreme an offset is quite difficult. This can be done with some puzzling, but it may take some time.
The VRM has no heatsink, which can be a problem for heavy overclocks because it can cause the motherboard at the I/O ports to get too hot.
If you go for the extreme, an asrock or msi board is better.
For this price you get a very solid board with all modern features. If you have a windowed case, the design with LED can be seen nicely. Confirmation was less than a minute's work.
All in all, definitely recommended for the lower price category of the ATX boards.
N. R.
22 August 2019
Automatically translated from Dutch
Product number | 817147 | |
|---|---|---|
Manufacturer code | B450 Aorus PRO | |
Brand | Gigabyte | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
Form factor (motherboards) | ATX |
|---|
Motherboard chipset | AMD B450 | |
|---|---|---|
Socket (CPU) | AM4 (1st gen AMD), AM4 (2nd gen AMD), AM4 (3rd gen AMD), AM4 (5th gen AMD) | |
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Voltage RAM | 1.2V | |
Memory speed | 3200 MHz | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
PCI Express x16 slots | 1 |
Nubmber of M.2 connectors | 2 |
|---|
DisplayPort connector | ||
|---|---|---|
HDMI connector | ||
Number of Female HDMI type A 1.4 ports | 1 | |
Thunderbolt connector | ||
DVI connector | ||
Number of Female DVI-D Dual Link ports | 1 | |
VGA connector |
Headphone jack | ||
|---|---|---|
Number of headphone jacks | 1 | |
Microphone connector | ||
Number of microphone connectors | 1 | |
Digital optical connector | ||
Audio processor | Realtek ALC1220 | |
Number of audio channels | 7 | |
Number of subwoofer channels | 1 |
