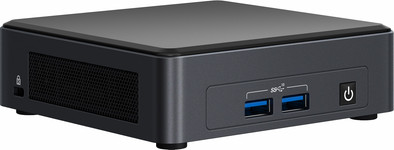

Intel NUC 11 Pro Kit i5 Tiger Canyon NUC11TNKI5
Never available again
View alternatives in the sidebar
Specifications
Product
Product number | 922625 | |
|---|---|---|
Manufacturer code | BNUC11TNKI50002 | |
Brand | Intel | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
General properties
Product family | Tiger Canyon | |
|---|---|---|
Barebone model | Slim kit | |
Connector included | ||
Compatible with Windows version | Windows 10 |
Processor properties
Processor brand | Intel | |
|---|---|---|
Processor family | Core i5 | |
Processor code name | Tiger Lake U | |
Processor cores | Quad-Core (4) | |
Threads | 8 |
Processor performances
Clock speed | 2,4 GHz | |
|---|---|---|
Overclockable | ||
Turbo speed | 4,2 GHz | |
Cache memory | 8 MB | |
Number of performance cores | 8 | |
Integrated graphics | ||
Type of integrated graphics | Intel Iris Xe Graphics |
RAM properties
Memory type | DDR4 | |
|---|---|---|
Total number of RAM slots | 2 | |
Maximum internal memory | 64 GB | |
Maximum memory speed | 3200 MHz | |
Voltage RAM | 1.2V |
Video card properties
Integrated video card | ||
|---|---|---|
Chipset brand | Intel | |
GPU chipset number | Intel Iris Xe Graphics |
Storage properties
Nubmber of M.2 connectors | 1 | |
|---|---|---|
Supported M.2 SSD formats | 22x80mm | |
M.2 SSD connector type | M |
Network and audio properties
Bluetooth | ||
|---|---|---|
Bluetooth version | 5.1 | |
Built-in WiFi | ||
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Ethernet port | ||
Number of Ethernet ports | 1 | |
Number of 1Gb/s Ethernet ports | 1 |
Video connections
HDMI connector | ||
|---|---|---|
Number of Female HDMI type A 2.0b connectors | 2 | |
DisplayPort connector | ||
Number of Female Standard DisplayPort 1.4a ports | 1 | |
Thunderbolt connector | ||
Number of Female Thunderbolt 3 (USB-C) ports | 2 |
USB ports on the front
USB-A ports front panel | ||
|---|---|---|
Total amount USB-A ports front panel | 2 | |
Amount of USB-A 3.2 Gen 1 (5 Gbps) ports front panel | 2 | |
USB-C ports front panel |
USB ports on the back
USB-A ports back panel | ||
|---|---|---|
Total number of USB-A ports back panel | 2 | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 1 | |
Number of USB-A 2.0 (480Mbps) ports back panel | 1 | |
USB-C ports back panel | ||
Total number of USB-C ports back panel | 2 | |
Number of USB-C 4.0 (40Gbps) ports back panel | 2 |
Audio properties
Digital optical connector |
|---|
Physical properties
Width | 11,7 cm | |
|---|---|---|
Height | 3,7 cm | |
Depth | 11,2 cm | |
Color | Black | |
Material | Metal, Plastic |
