Specifications
Product
Product number | 965083 | |
|---|---|---|
Manufacturer code | 90MB1IB0-M0EAY0 | |
Brand | ASUS | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
General properties
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Revision | 1.0 | |
TPM (Trusted platform module) | ||
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset properties
Chipset brand | AMD | |
|---|---|---|
Motherboard chipset | AMD X870E | |
Socket (CPU) | AMD AM5 | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
RAM properties
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Voltage RAM | 1.2V | |
Memory speed | 8400 MHz | |
Maximum memory speed | 8400 Hz | |
Maximum internal memory | 256 GB | |
Number of memory channels | Dual channel (2) |
PCIe connectors
PCI Express x1 slots | 0 | |
|---|---|---|
PCI Express x16 slots | 2 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 |
Storage properties
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 5 | |
Number of cooled M.2 SSD slots | 5 | |
Number of M-key (PCIe 5.0) slots | 3 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 4 |
WiFi and Bluetooth properties
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless BE (WiFi 7), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.4 |
Video connections
DisplayPort connector | ||
|---|---|---|
HDMI connector | ||
Number of Female HDMI type A 2.1 ports | 1 | |
Thunderbolt connector | ||
DVI connector | ||
VGA connector |

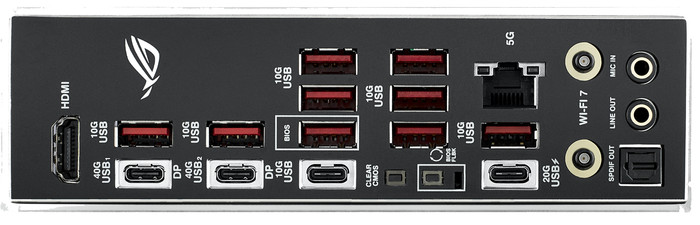

USB connectors
USB-C ports back panel | ||
|---|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 | |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 | |
Number of USB-C 4.0 (40Gbps) ports back panel | 2 | |
USB-A ports back panel | ||
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 9 |
Audio and Ethernet connectors
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Digital optical connector | ||
Audio processor | ROG SupremeFX Black |
Power connectors
Fan headers | ||
|---|---|---|
Number of 4-pin CPU fan headers | 1 | |
Number of 4-pin CPU optional headers | 1 | |
Number of 4-pin system fan headers | 5 | |
Number of 4-pin CPU water cooling fan headers | 1 | |
Type of power connector for motherboard | 24-pin ATX connector | |
Type of power connector for CPU | 8+8 pin ATX connector | |
RGB headers | ||
Number of RGB headers | 2 | |
USB headers on the motherboard | ||
Number of USB 2.0 (480Mbps) headers on the motherboard | 3 | |
Number of USB 4.0 (40Gbps) headers on the motherboard | 1 |
Other connectors
USB-A ports on the motherboard | 2 | |
|---|---|---|
BIOS flash button on the motherboard | ||
Clear CMOS button on the motherboard | ||
Power button on the motherboard |
RGB lighting
RGB lighting | ||
|---|---|---|
Number of colors lighting | Multicolor | |
Color lighting | Red | |
Zones separately lit | ||
Lighting connectable with peripherals |
