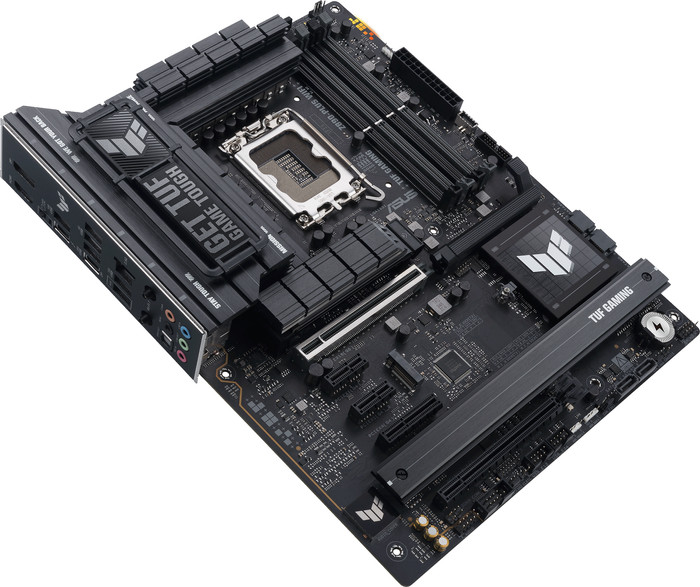

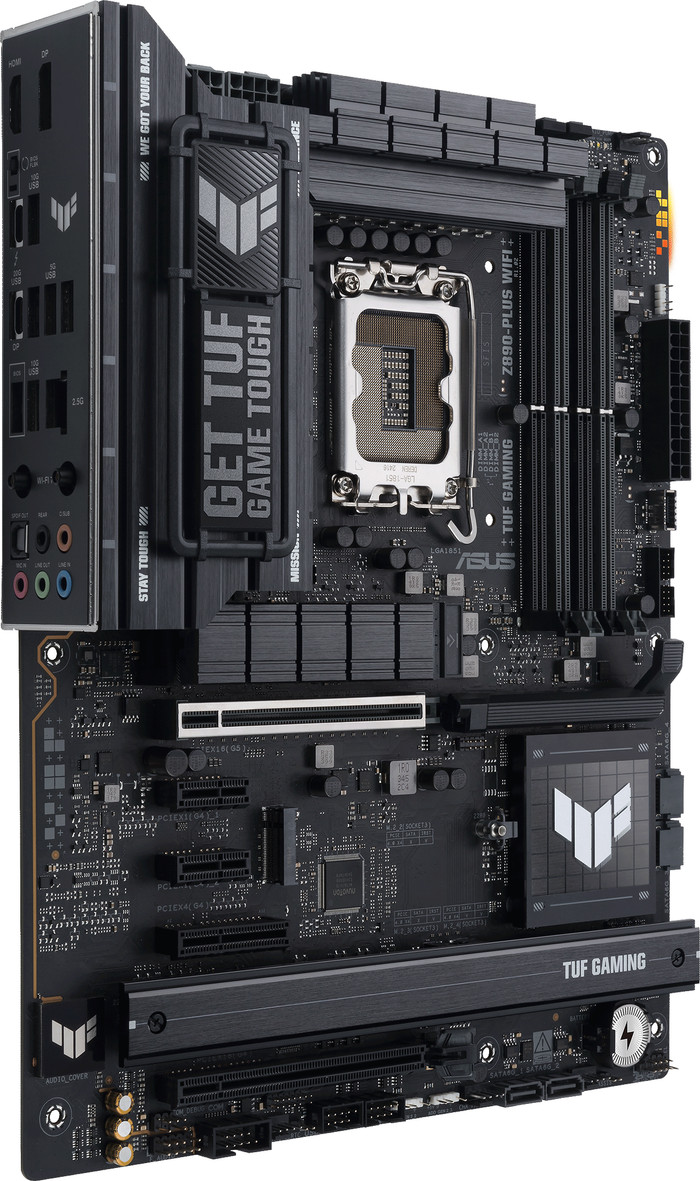

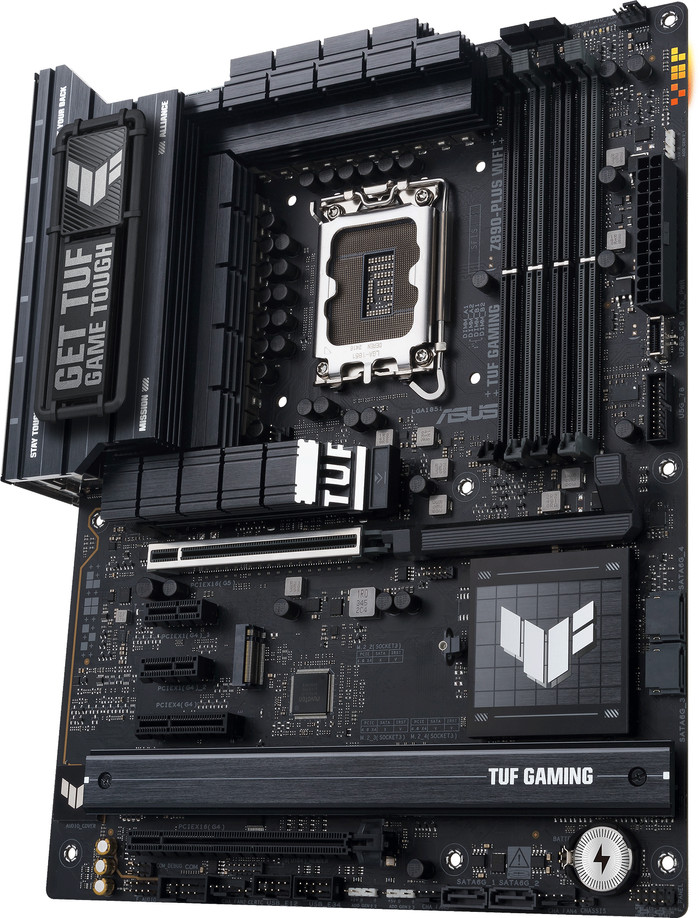

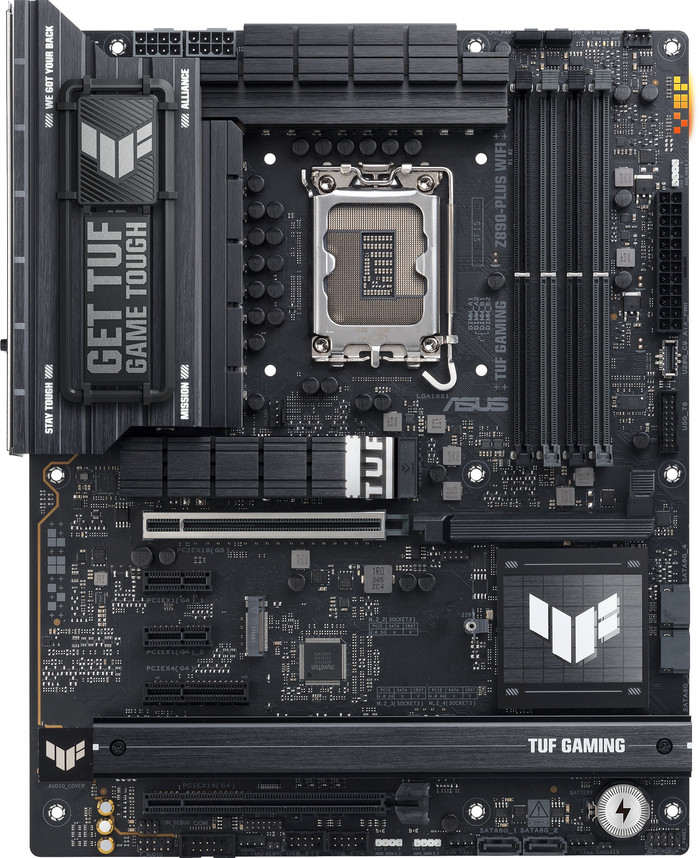

ASUS TUF Gaming Z890-PLUS WiFi
According to our motherboard expert
Note: this motherboard only works with Intel Core Ultra Series 2 processors with an LGA 1851 socket.
With the ASUS TUF Gaming Z890-PLUS WiFi, you can build a powerful desktop with AI support. This ATX Z890 motherboard works together with Intel Core Ultra Series 2 processors. That way, you can build a desktop PC and work with AI tasks. You can install up to 4 RAM modules on this motherboard to build a large and fast RAM up to 256GB. That's useful if you want to start with AI learning. For storage, you can install multiple SSDs on the PCIe 4.0 and PCIe 5.0 slots. When you connect your SSD to the PCIe 5.0 connector, you can process data up to 2 times faster than PCIe 4.0. That way, you can transfer large files quickly. In addition, you can choose between wired and wireless internet. Via the WiFi 7 module or 2.5Gbps Ethernet port, you can have access to a fast and stable internet connection thanks to both options. This ASUS motherboard also works well together with ASUS AI Solutions. This AI software regulated the cooling, sound, fans, and keeps your network stable when you work via WiFi.
Socket (CPU) | 1851 (15th gen Intel), Intel LGA 1851 | |
Motherboard chipset | Intel Z890 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
No deductible
For almost all accidents
More security than standard warranty
Coolblue takes care of everything, from taking out an insurance to repairs
First, add your motherboard to your shopping cart. On the next page, choose the Protection Plan below. You always have a 30-day return window and pay no deductible in case of damage.
2-year Protection Plan
6,99
one-time3-year Protection Plan
11,99
one-time
Product number | 969041 | |
Manufacturer code | 90MB1IQ0-M0EAY0 | |
Brand | ASUS | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue | |
Old product returned for free |
Revision | 1.0 | |
TPM (Trusted platform module) | ||
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
Motherboard chipset | Intel Z890 | |
Socket (CPU) | 1851 (15th gen Intel), Intel LGA 1851 | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
Memory type | DDR5 | |
Memory speed | 9066 MHz | |
Maximum memory speed | 9066 Hz | |
Maximum internal memory | 256 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 2 | |
Version PCIe x1 slots | PCIe 4.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
Nubmber of M.2 connectors | 4 | |
Number of cooled M.2 SSD slots | 3 | |
Number of M-key (PCIe 5.0) slots | 1 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
WiFi standards | Wireless BE (WiFi 7) | |
Bluetooth | ||
Bluetooth version | 5.3 |
DisplayPort connector | |
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
Number of Female Thunderbolt 4 (USB-C) ports | 1 |
DVI connector | |
VGA connector |

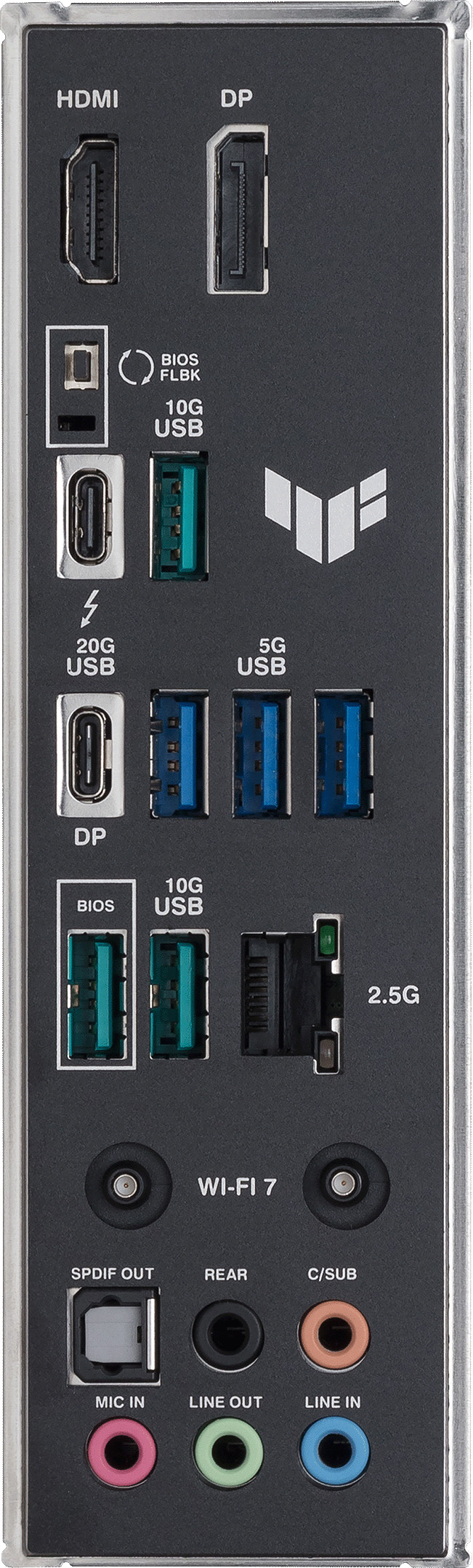

USB-C ports back panel | |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
Number of USB-C 4.0 (40Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 3 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 3 |
Headphone jack | ||
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek ALC1220P |
Fan headers | |
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin CPU optional headers | 1 |
Number of 4-pin system fan headers | 4 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 3 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
USB-A ports on the motherboard | 2 |
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting |
