Bosch PVS775HC1E
Our choice for an extra wide 56cm cutout cooktop with extra space for your pans.
Choose your cooktop
Extra wide - flexible cooking zone - PerfectFry
We don't connect your cooktop for you. Don't you have experience with connecting Perilex connectors? Call a certified electrician. Make sure to check if you have a 2-phase connection in your fuse box, and a Perilex socket in your kitchen. If that?s not the case, choose a cooktop that?s suitable for 1 phase.
Check here how to see if your fuse box supports 2 phasesChoose your cooktop
Insure your Cooktop
Coolblue takes care of everything, from taking out an insurance to repairs
For almost all accidents
More coverage in case of damage than your standard warranty
No deductible
How do I insure my Cooktop?
First, add your Cooktop to your shopping cart. On the next page, choose the Protection Plan below. You always have a 30-day return window and pay no deductible in case of damage.
4-year Protection Plan
55,-
one-time5-year Protection Plan
75,-
one-time
Siemens: 5-year warranty if you buy 4 build-in appliances
If you purchase 3 other Siemens built-in appliances in addition to the Bosch PVS775HC1E, you'll receive 3 years of extra warranty on top of the standard 2-year warranty given by Coolblue. In this article, you can read when you're entitled to the 5-year warranty, and how to activate it.
Specifications
Product
Product number | 946162 | |
|---|---|---|
Manufacturer code | PVS775HC1E | |
Brand | Bosch | |
Processing of your defect | At your home | |
Old product returned for free |
General features
Appliance placement | Built-in | |
|---|---|---|
Cooktop heating | Induction | |
Width | 71 cm | |
Height | 5,1 cm | |
Depth | 52,7 cm | |
Weight | 9,4 kg | |
Color | Black | |
Finish cooktops | Gloss | |
Cooking surface material | Glass | |
Cooktop frame | Raised edge | |
Frame material | Glass | |
Cover |

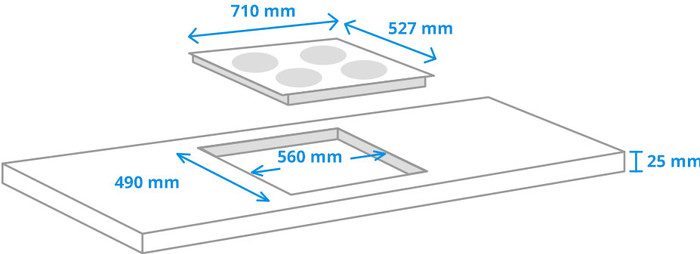

Installation dimensions
Standard cooktops cutout width | 56 cm | |
|---|---|---|
Minimum distance between the cutout and the wall (cooktops) | 5 cm | |
Built-in niche width | 56 cm |
Physical properties
Number of settings | 17 | |
|---|---|---|
Flexible cooking zone | ||
Number of flexible cooking zones | 1 | |
Boost function | ||
Max. power of the largest cooking zone | 3,7 kW | |
Keep-warm function | ||
Auto heat-up | ||
Auto shut-off in case of overflow | ||
Temperature control | ||
Pan recognition | ||
Pan size recognition | ||
Residual heat indicator | ||
Temperature setting | Settings | |
Preparation quality | Mid-range | |
Included by default | Installation kit, Manual, Power cord | |
Oven-controlled |
User-friendliness
Control options | Touch keys, Via application (smartphone/tablet) | |
|---|---|---|
Memory function | ||
Safety switch-off | ||
Child safety lock | ||
Overheating protection | ||
All-off button | ||
On/off indicator | ||
Brand-specific technologies | Bosch Home Connect, Bosch HoodControl, Bosch PerfectFry |
Electrics
Connector included | ||
|---|---|---|
Connection to number of phases in the Netherlands | 2 phases (Perilex connector) | |
Connection to number of phases in Germany | 2 phases (3680 - 7360W) | |
Minimum power supply | 6900 W | |
Location of electric connector | Right rear |
Cooking zone properties
Number of cooking zones | 4 | |
|---|---|---|
Cooking zone 1 | Expandable | |
Power output cooking zone 1 | 2,5 kW | |
Length cooking zone 1 | 19 cm | |
Width cooking zone 1 | 21 cm | |
Cooking zone 2 | Expandable | |
Power output cooking zone 2 | 2,5 kW | |
Length cooking zone 2 | 19 cm | |
Width cooking zone 2 | 21 cm | |
Cooking zone 3 | Standard | |
Power output cooking zone 3 | 1,6 kW | |
Diameter cooking zone 3 | 14,5 cm | |
Cooking zone 4 | Standard | |
Power output cooking zone 4 | 2 kW | |
Diameter cooking zone 4 | 18 cm |
