AEG TN64RA06XB
We don't connect your cooktop for you. Don't you have experience with connecting Perilex connectors? Call a certified electrician. Make sure to check if you have a 2-phase connection in your fuse box, and a Perilex socket in your kitchen. If that?s not the case, choose a cooktop that?s suitable for 1 phase.
Check here how to see if your fuse box supports 2 phases- Be the first to know when this product is in stock
Insure your Cooktop
Coolblue takes care of everything, from taking out an insurance to repairs
For almost all accidents
More coverage in case of damage than your standard warranty
No deductible
How do I insure my Cooktop?
First, add your Cooktop to your shopping cart. On the next page, choose the Protection Plan below. You always have a 30-day return window and pay no deductible in case of damage.
4-year Protection Plan
34,99
one-time5-year Protection Plan
47,99
one-time
Specifications
Product
Product number | 970572 | |
|---|---|---|
Manufacturer code | 949493064 | |
Brand | AEG | |
Processing of your defect | At your home | |
Old product returned for free |
General features
Appliance placement | Built-in | |
|---|---|---|
Cooktop heating | Ceramic | |
Width | 57,6 cm | |
Height | 3,8 cm | |
Depth | 51,6 cm | |
Weight | 7,8 kg | |
Color | Black | |
Cooking surface material | Glass | |
Cooktop frame | Decorative frame | |
Frame material | Stainless steel | |
Cover |

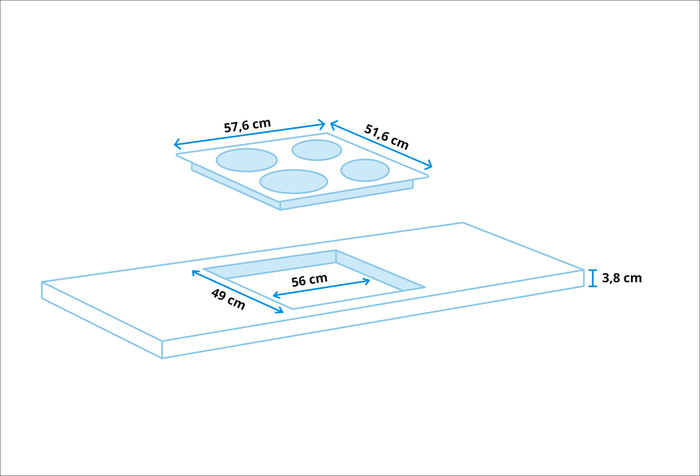

Installation dimensions
Standard cooktops cutout width | 56 cm | |
|---|---|---|
Minimum distance between the cutout and the wall (cooktops) | 5,5 cm | |
Built-in niche width | 56 cm |
Physical properties
Number of settings | 4 | |
|---|---|---|
Boost function | ||
Keep-warm function | ||
Auto heat-up | ||
Auto shut-off in case of overflow | ||
Temperature control | ||
Pan recognition | ||
Pan size recognition | ||
Residual heat indicator | ||
Preparation quality | Mid-range | |
Included by default | Installation kit, Manual, Power cord | |
Oven-controlled |
User-friendliness

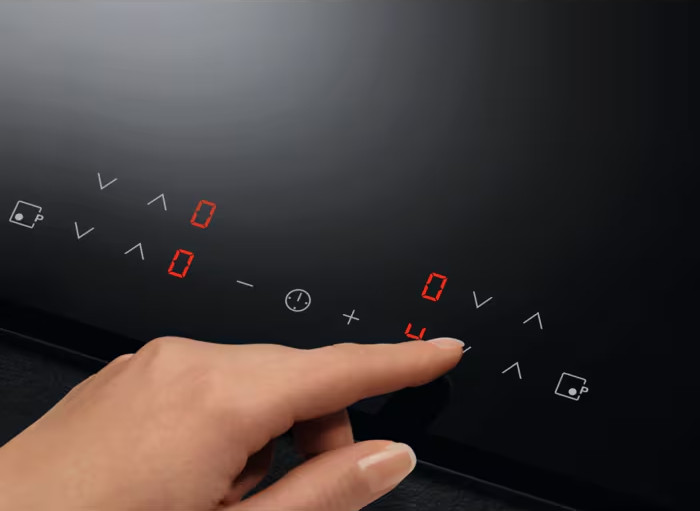

Control options | Touch keys, Touchscreen | |
|---|---|---|
Cooktop controls via oven | ||
Memory function | ||
Safety switch-off | ||
Child safety lock | ||
Overheating protection | ||
All-off button | ||
On/off indicator |
Electrics
Suitable for plug type | Perilex (5-pin) | |
|---|---|---|
Connector included | ||
Connection to number of phases in the Netherlands | 2 phases (Perilex connector) | |
Connection to number of phases in Germany | 2 phases (3680 - 7360W) | |
Minimum power supply | 7000 W | |
Location of electric connector | Right rear |

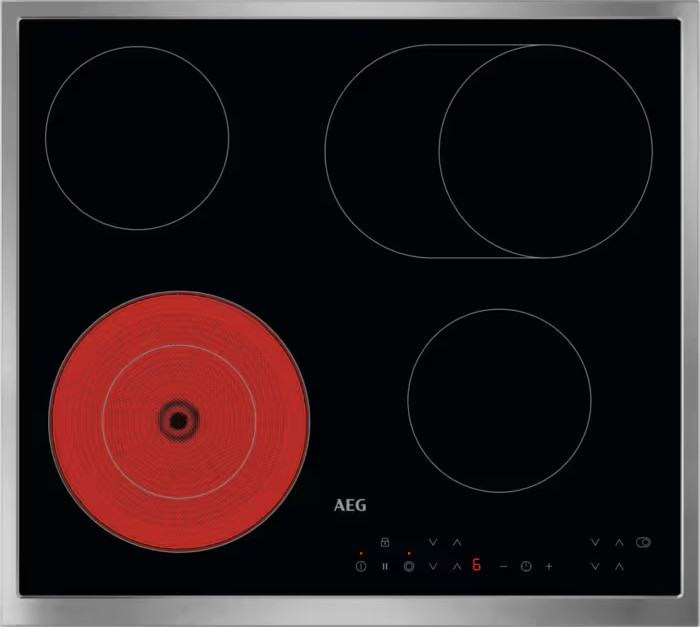

Cooking zone properties
Number of cooking zones | 4 | |
|---|---|---|
Cooking zone 1 | Expandable | |
Power output cooking zone 1 | 2,2 kW | |
Diameter cooking zone 1 | 21 cm | |
Cooking zone 2 | Standard | |
Power output cooking zone 2 | 1,2 kW | |
Diameter cooking zone 2 | 14,5 cm | |
Cooking zone 3 | Standard | |
Power output cooking zone 3 | 1,2 kW | |
Diameter cooking zone 3 | 14,5 cm | |
Cooking zone 4 | Expandable | |
Power output cooking zone 4 | 1,5 kW | |
Length cooking zone 4 | 26,5 cm | |
Width cooking zone 4 | 17 cm |
